SEM Images of Clays

Introduction

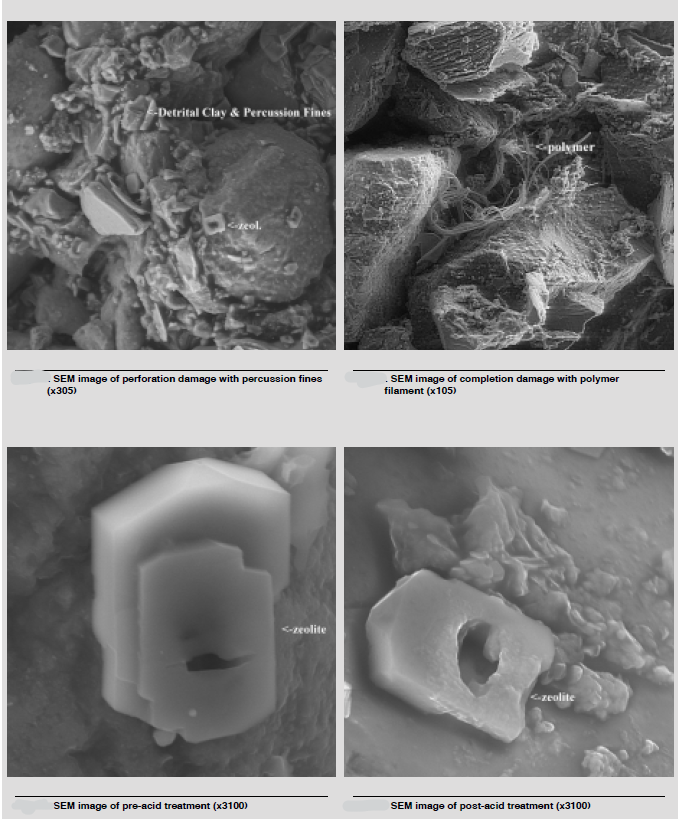

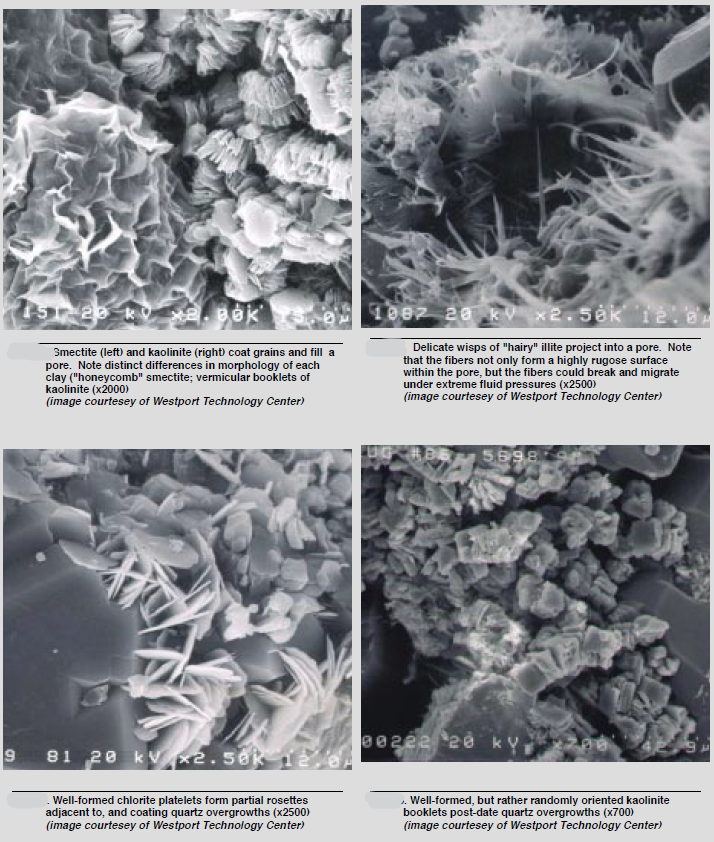

Below are some Scanning Electron Microscope images of clays which can cause formation in both conventional and unconventional reservoirs. Pre and post stimulation images are also available.
