FMB P/z Plot

Introduction

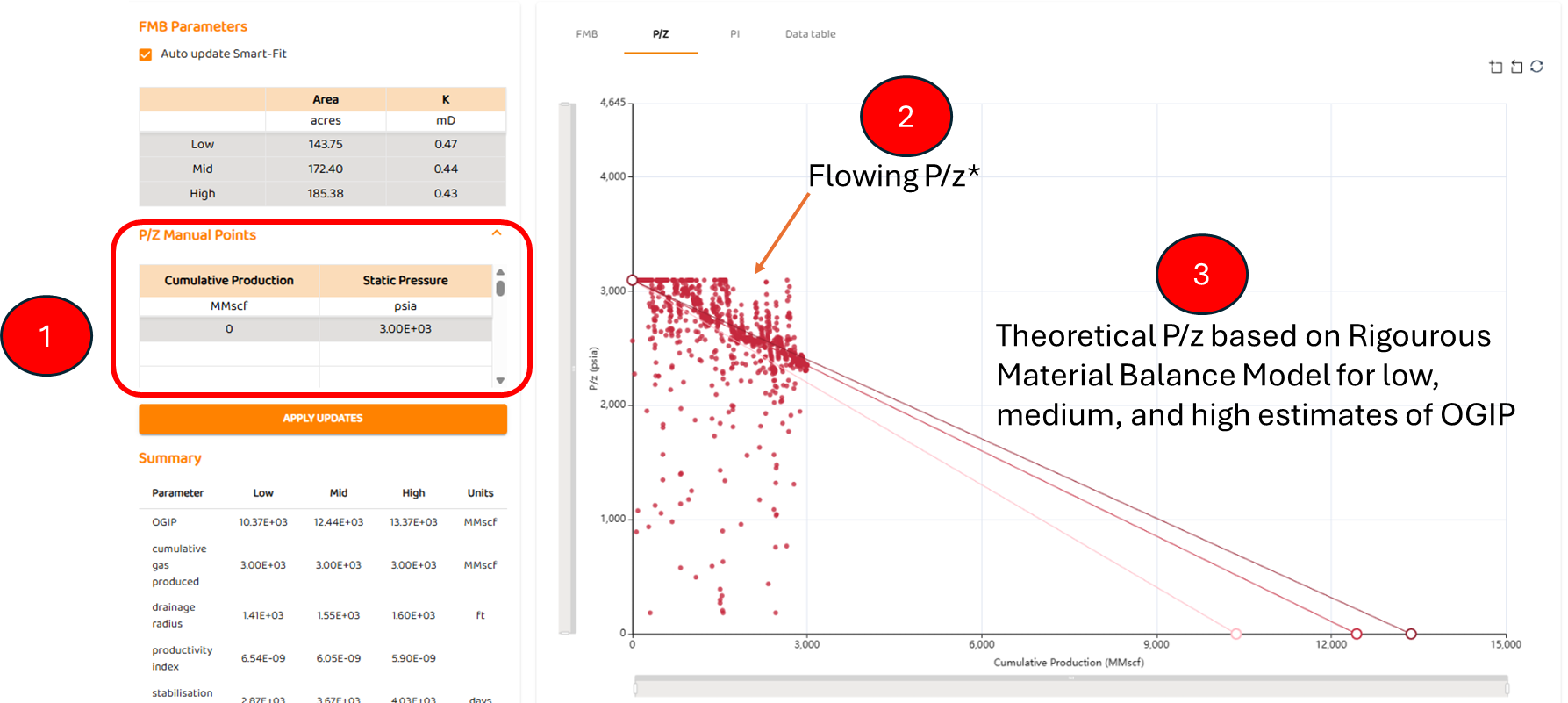

This plot contains:

1. The ability to enter manual P-Gp values to plot against

   1. Users must type values of shut-in pressures with the associated cumulative gas production at that point in time.

2. The Flowing P/z*

3. The Theoretical P/z for the low, medium, and high FMB estimates
