Introduction
In the examples below, we can see two interpretations of data:
-
No-Flow Boundary
Indonesian Field Example #1:

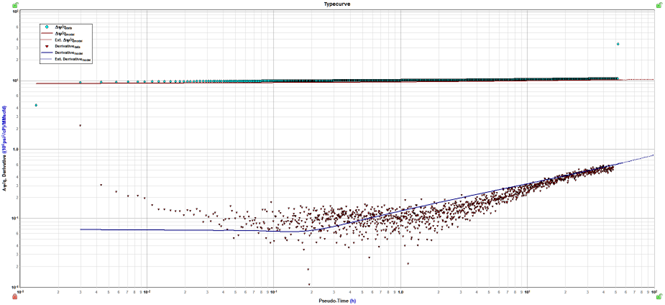

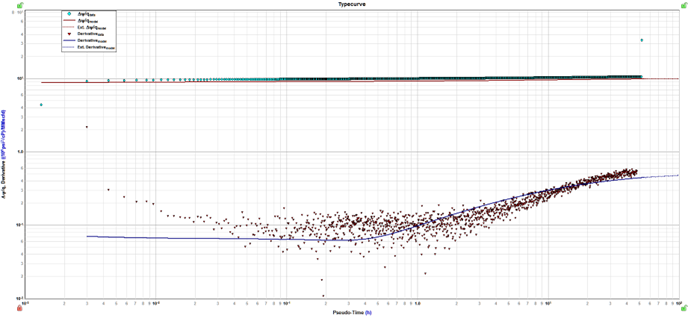

In this example, it was demonstrated that either a radial composite, a pure linear boundary, or even possibly a linear composite model would reproduce the raw data.
Indonesian Field Example #2:
In this field example, we show how two models may produce similar results.
-

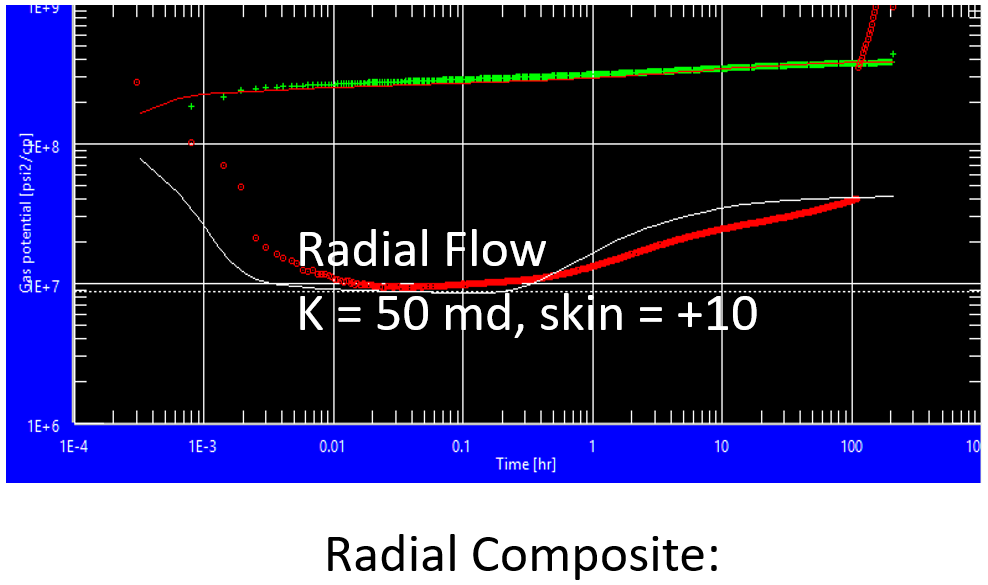

The composite model assumes a decrease in permeability or permeability-thickness by a factor of 5, The loss starts to occur at a distance of about 300 ft.
-

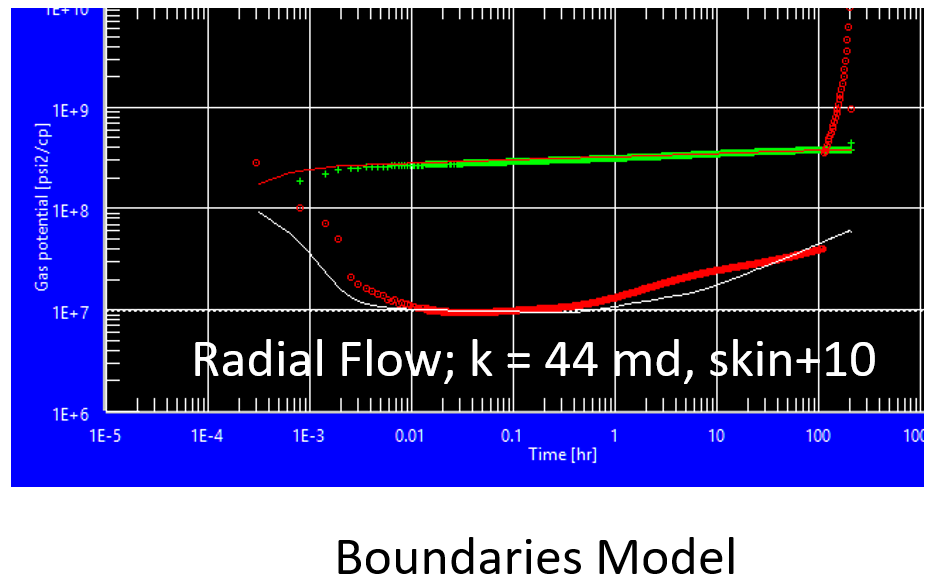

The boundary model assumes the first boundary is see at approximately 300 ft, followed by a the second boundary at 900. This could be interpreted as 1,200 ft wide channel
-
Both models give a kh value of 2534 md.ft, or a permeability of about 45 – 50 md.
