Condensate (Liquid Drop Out)

Introduction

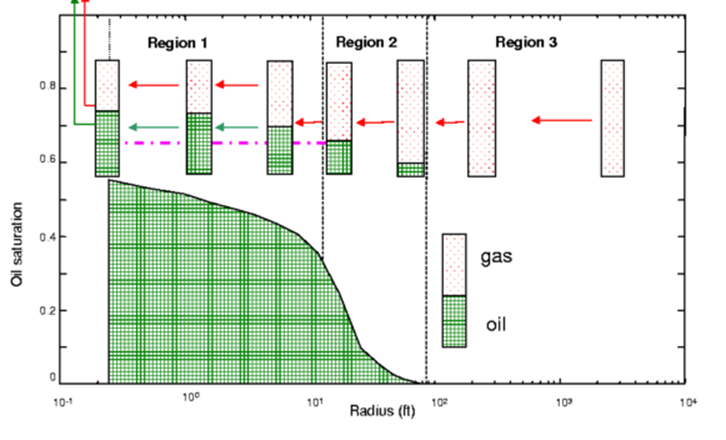

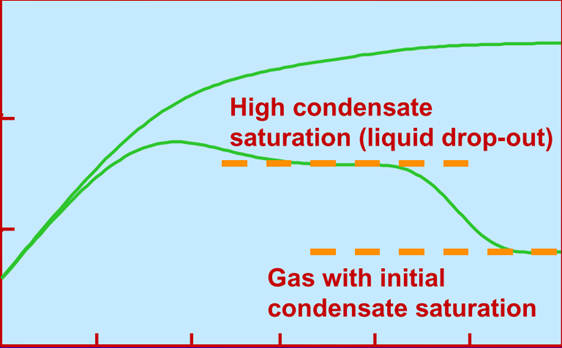

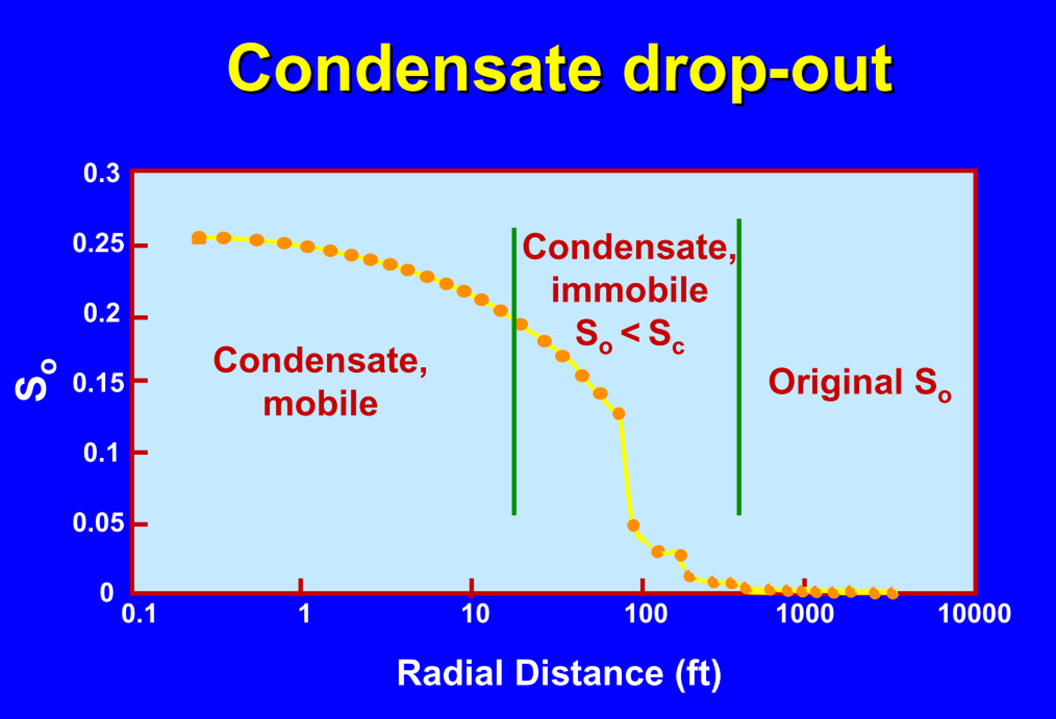

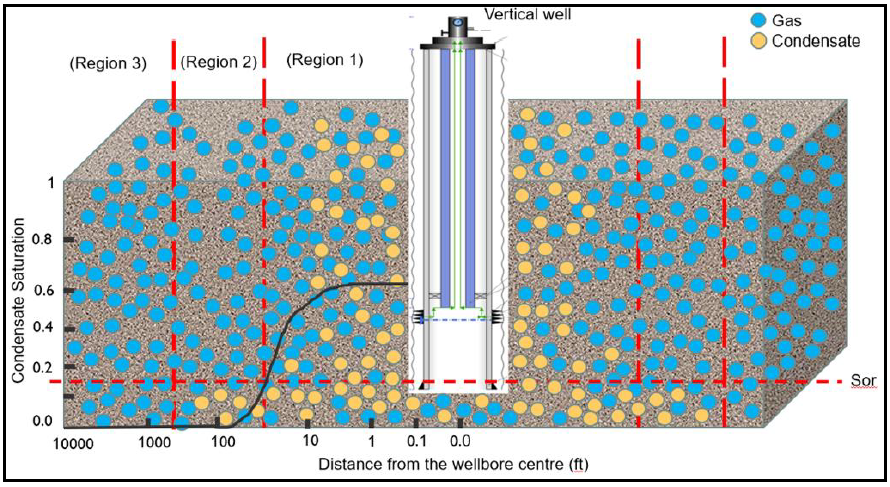

The plots below shows the idealized saturation profiles and Bourdet pressure (which resembles a radial composite system), for a gas condensate reservoir in which gas condenses within the lower pressure region near the wellbore. In the near wellbore region, the gas saturation is very low (which also means a low relative permeability to gas) thus acting as a pos itive skin for the gas system.






See Also:

Collapse all Expand all   Collapse all

References:

  • Ogunrewo, O.. , and A. C. Gringarten. "Deconvolution of Well Test Data in Lean and Rich Gas Condensate, and Volatile Oil Wells below Saturation Pressure." Paper presented at the SPE Annual Technical Conference and Exhibition, New Orleans, Louisiana, USA, September 2011

  • Kgogo, T. C., and A. C. Gringarten. "Well Test Analysis of Medium-Rich to Rich Gas-Condensate Layered Reservoirs." Paper presented at the SPE EUROPEC/EAGE Annual Conference and Exhibition, Vienna, Austria, May 2011.

  • Sanni, M., and A. C. Gringarten. "Well Test Analysis in Volatile Oil Reservoirs." Paper presented at the SPE Annual Technical Conference and Exhibition, Denver, Colorado, USA, September 2008.
