Field Example: Powder River Basin

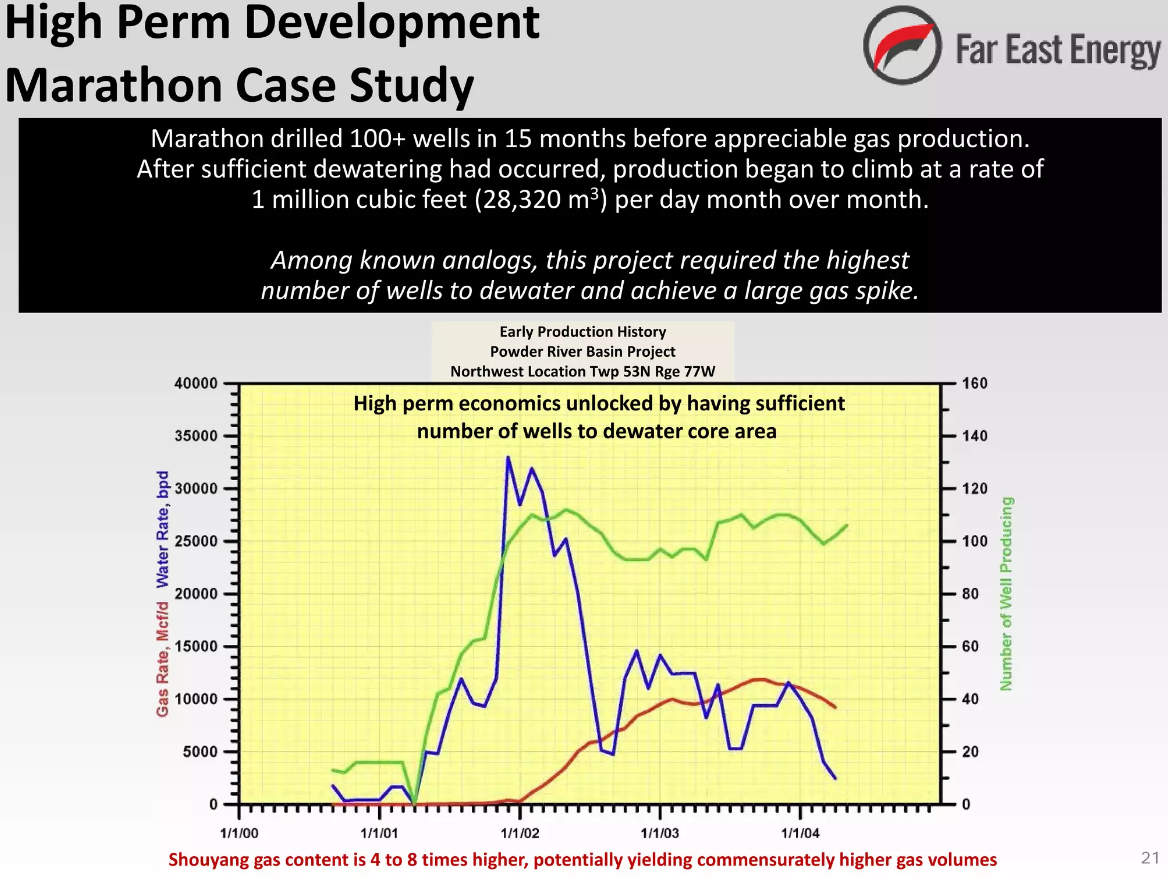

The following is a snippet from an investor presentation made by Far East Energy corporation.

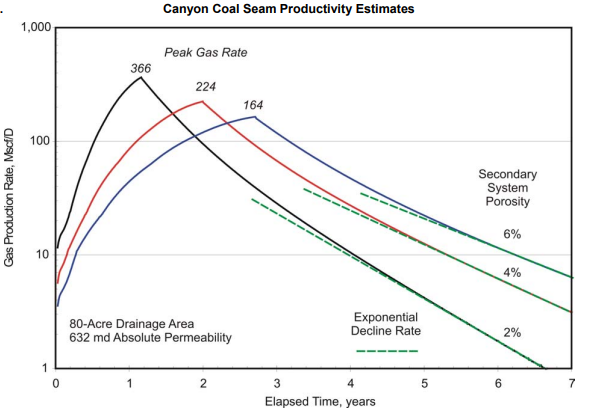

The second image is simulation results from Mavor et al (2003) for an 80 Acre well spacing with 632 md Reservoir Permeability, and 2 to 6%. Obviously, with lower effective cleat porosity, gas peaks occur earlier with all other parameters being equal.

Representative Powder River 80 Acre simulation scenario (Mavor et al, 2003).

References

  • Matthew J. Mavor, Boyd Russell, and Timothy J. Pratt, Powder River Basin Ft. Union Coal Reservoir Properties and Production Decline Analysis, SPE 84427, 2003.
